Nylon Cord Winding Ship Launching Airbags 1000mm To 24000mm Length

Brand Name : XINCHENG

Model Number : 1.5*15m

Certification : SGS CCS LR RS BV ISO9001

Place of Origin : Qingdao

MOQ : 1piece

Price : $200-6000/piece

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 150PCS per month

Delivery Time : 15days

Packaging Details : deflated by tray

Length : 5.0m-20m,from 1000mm to 24000mm

Working pressure : 0.05MPa to 0.15Pa

Size : Customized Size,Customer's Ruquirement

Usage : Ship launching,landing and slvage

Diameter : 0.8--2.5M,1.8m

Warranty period : 24 months

Contact Now

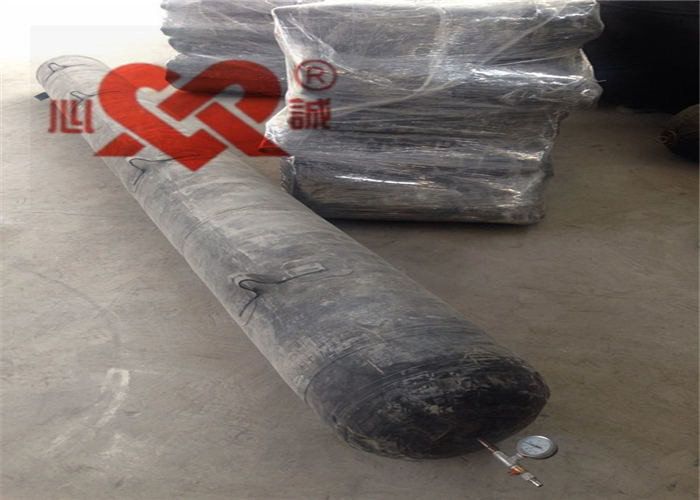

Nylon Cord Winding Ship Airbag , Marine Airbag For Ship Launching

Ship launching rubber airbags technique was found to be versatile and flexible in marine engineering fields. Rubber Airbags can lift up heavy like jacks and move it forward,act as pneumatic rollers. Airbags can roll over pits and knuckles, so they have less demands of the ground or ramp. Different from rigid trolleys, launching airbags can be compressed at different ratio, thus they can absorb the impact energy emerges in some structure launching projects.
Product Feature
1. Special synthetic tire-cord layer material
Our rubber airbags are made with special sunthetic tire-cord layers, which have much better performance than those made with PVC coated fabrics.
2. High-Pressure Design
Our rubber airbag has a maximum working pressure of 0.25MPa . That means that they can be used under 25m water-depth.
3. Holistic Screw Type Enlacing Salvage Airbags
Our rubber airbags are a totally enclosed tube with cone ends. It is manufactured using Holistic Screw technology.This design ensures that there aren't any welded seams. This makes them stronger than RF welded airbags.
4. Equipped with accessories
Our Salvage-Bags are equipped with nylon straps and shackles with 6:1 safety factor.

The approximate bearing capacity can be calculated as follows:

F=PS

S=π x (D1-D2)/2

Mark:

F: Bearing capacity

P: Inner pressure

S: Contact area

D1: Diameter of airbags when free of loat

D2: Working height of airbags when loaded

Some normal sizes of our marine airbags, other sizes are also available
Diameter(m)
Effective Length(m)
Layer
Pressure(MPa)
1.0
10
5~6
0.07~0.10
1.0
12
5~6
0.07~0.10
1.0
15
5~6
0.07~0.10
1.2
10
5~6
0.08~0.12
1.2
12
5~6
0.08~0.12
1.2
15
5~6
0.08~0.12
1.5
12
5~8
0.08~0.16
1.5
15
5~8
0.08~0.16
1.5
18
5~8
0.08~0.16
1.5
20
4~8
0.08~0.16
1.5
24
5~8
0.08~0.16
1.8
12
5~8
0.08~0.15
1.8
15
5~8
0.08~0.15
1.8
18
5~8
0.08~0.15
1.8
20
5~8
0.08~0.15
1.8
24
5~8
0.08~0.15
2.0
18
6~10
0.08~0.18
2.0
20
6~10
0.08~0.18
2.0
24
6~10
0.08~0.18
2.5
18
7~10
0.07~0.13
2.5
20
7~10
0.07~0.13
2.5
24
7~10
0.07~0.13

airbag features
1. Big carrying capacity
2. High capacity against compression and twisting
3. New design of anti-bursting contruction at the end
4. Optimized structural layout
5. Durable aging resistance and anti-wear characteristic
6. Higher flesibility and damping capacity.
